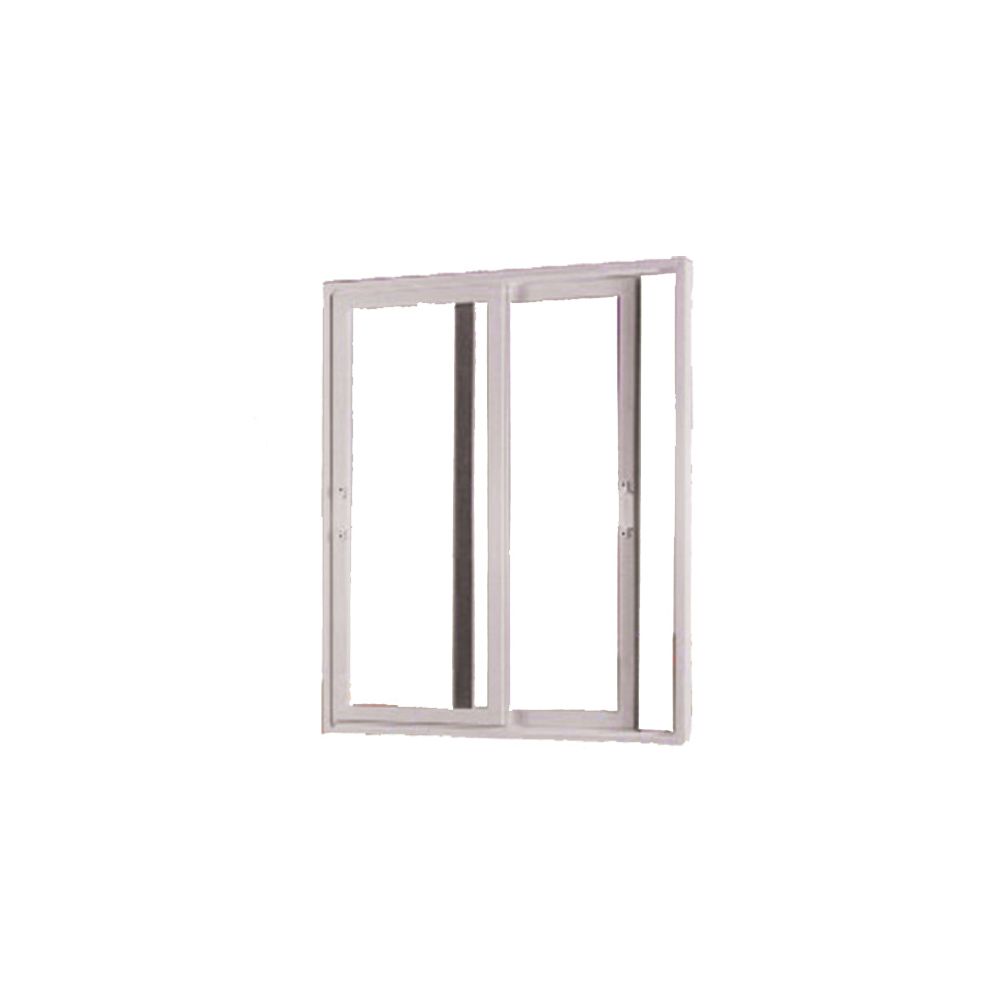

The Easy Horizontal Sliding system is an easily installed effective barrier for flying insect and bird control whilst allowing fresh air ventilation. This system has been specifically designed for commercial kitchen use to allow simple access to existing windows.
Suitable for commercial and domestic applications
High quality powder coated 49x13mm aluminum frame
Inner panes are removable for cleaning and maintenance purposes
Standard Fibreglass (18x16) Charcoal mesh
Prices are for two horizontal sliding inner panes
Maximum recommended width 4880mm
Maximum recommended height 2100mm
Construction - The 49mm wide four sided outer frame is supplied cut to size complete with mitred corners but disassembled for transportation purposes. Inner panes fully manufactured to size ready to install complete with mitred corners and mesh fitted. Customer to assemble outer track and attach handles to inner panes only.
Installation Information – Designed for reveal fitting only through the outer framing with use of cover caps for screw entry holes into window reveals. Measure the width and height of the reveal in three different places. Take the smallest sizes and subtract 5mm for fitting purposes. Once screen has been installed, tidy with suitable trim or sealant where appropriate.
