Key Features & Benefits:

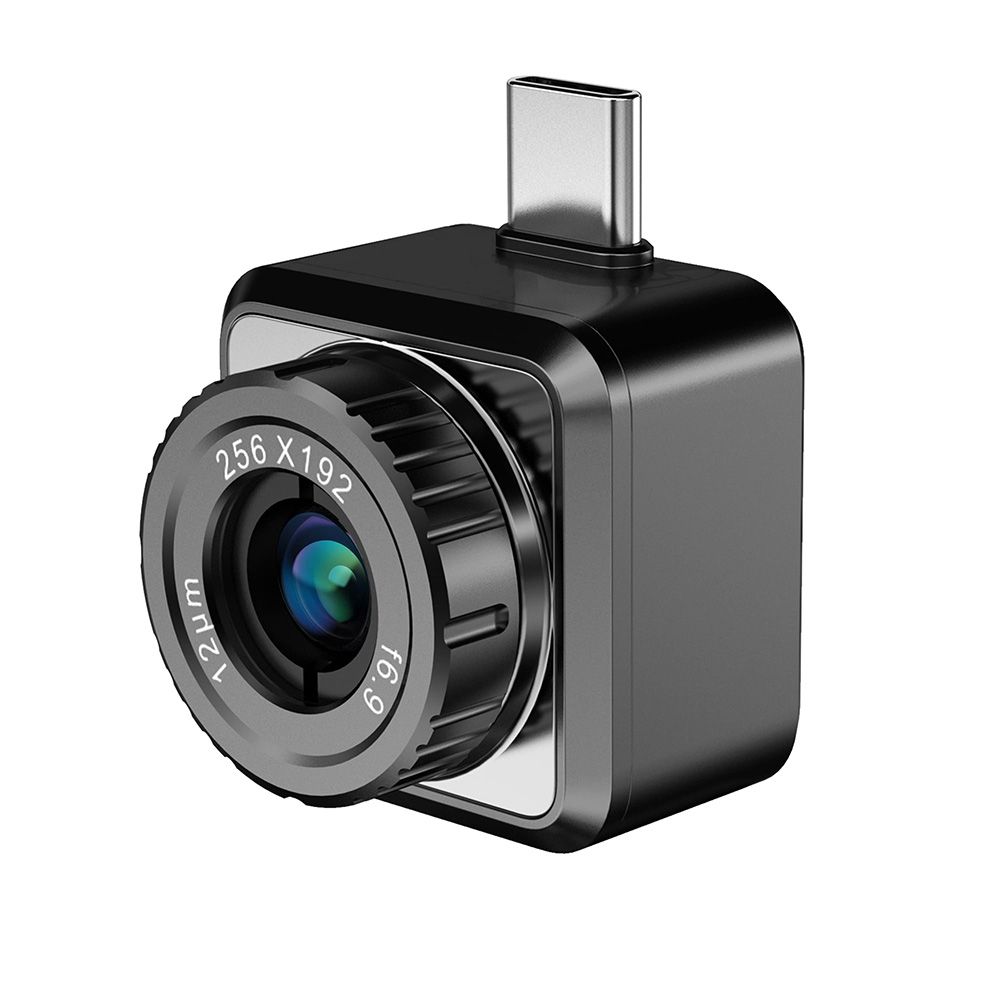

• High thermal resolution: 256 × 192 - Captures detailed thermal images that support precise detection of heat loss, hotspots, pest harbourage points, and insulation issues.
• SuperIR image enhancement - Improves clarity on both live view and captured images, which assists with accurate reporting and faster diagnostics.
• 3 in 1 multi platform compatibility - Supplied with USB C for Android and iOS and a Lightning to USB C adapter. Enables seamless use across the majority of modern smartphones.
• Wide temperature measurement range - Operates from minus 20°C to 400°C which allows effective use in domestic, commercial, and light industrial environments.
• Manual focus - Offers control for close up inspections at a minimum focus distance of 0.1 metres. Useful for checking cracks, vents, pipework, and structural details.
• Low NETD sensitivity <40 mK - Detects subtle temperature differences which enhances problem identification during surveys.
• Lightweight 24 g design - Easy to transport and suitable for technicians who require fast deployment on site.

How to Use:

Attach the thermal camera to a compatible smartphone using the USB C or Lightning interface. Open the Hikmicro Viewer app and select the desired colour palette, image mode, and measurement tools. Adjust manual focus as required. Capture images or videos and export them through the app for analysis or reporting. Follow the manufacturer guidance for safe operation, firmware updates, and storage.

Why Pest Control and Inspection Professionals Choose This Product:

The Mini2 Plus V2 supports accurate detection of heat sources associated with pests, electrical faults, moisture intrusion, and HVAC issues. Its compact dimensions and very low power consumption make it practical for fieldwork. The combination of high resolution thermal output, advanced enhancement technology, and multi platform connectivity results in a tool that consistently improves survey efficiency and reporting accuracy.

Additional Information:

Model Reference

HM Tj32 7RF Mini2Plus V2

Device and software compatibility

Compatible with iOS version 14 and later, Android version 7 and later, and Windows devices. Supports Hikmicro Viewer for iOS and Android and Hikmicro Analyzer for Windows.

Protection and durability

Rated IP40 with a one metre drop test height. Suitable for operating temperatures from minus 10°C to 50°C.

Included packaging and accessories

• Thermal imager
• USB C extension cord
• Lightning adaptor
• USB C extension adaptor
• Protective case
• Quick start guide
• Compatible with optional Pocket or Mini Series accessories, including the HM AHBR02 desktop stand bracket

FAQs

Can the Hikmicro Mini2 Plus V2 be used with both iOS and Android devices

Yes. It supports USB C for Android and iOS and includes a Lightning to USB C adapter. It is compatible with iOS version 14 and later and Android version 7 and later.

What is the temperature measurement range of this device

It measures temperatures from minus 20°C to 400°C. This makes it suitable for domestic and commercial inspections including HVAC checks and heat loss assessments.

Does the imager provide enhanced thermal clarity

Yes. It uses SuperIR image enhancement on both live view and captured images which improves clarity and detail.

Is the focus adjustable for close up inspections

Yes. It features manual focus with a minimum focus distance of 0.1 metres which is useful for detailed structural or equipment checks.

Is the device suitable for professional pest control surveys

Yes. Its high thermal resolution, sensitivity, and portability support accurate detection of heat signatures associated with pests and environmental conditions.

Does the device require any specialist software

You can operate the camera using the Hikmicro Viewer app for iOS and Android. For further analysis and reporting you can use Hikmicro Analyzer for Windows.
