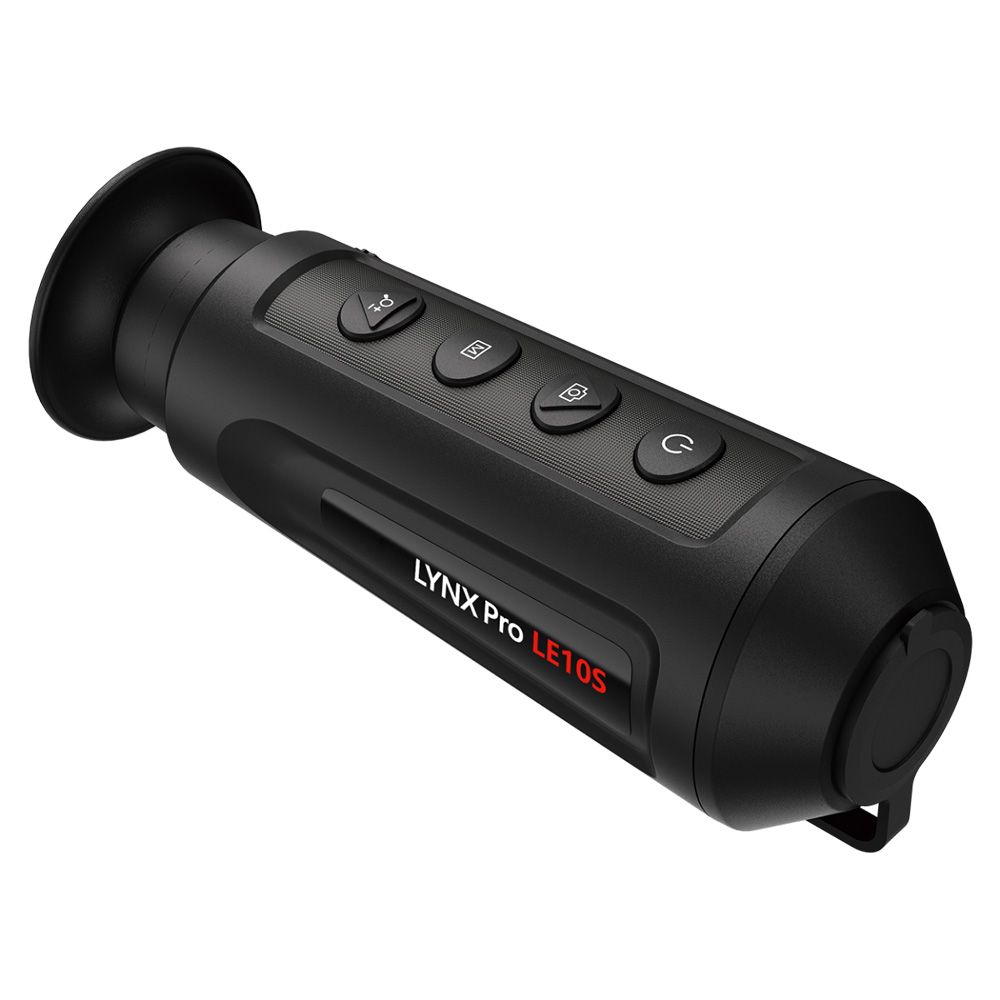

The Lynx-S LE10 Micro Thermal Monocular is focused on delivering high-level thermal performance at an entry-level price point.

At the heart of this enhanced performance is the 256 x 192, 12um sensor, this delivers higher levels of image detail that will be especially useful when trying to locate and identify small animals like rabbits, squirrels and birds. The sub 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions.

The Lynx-S 10mm includes 4 colour palettes, white-hot, black hot, red hot and fusion. The LE10 can also record video or images with the onboard memory or connect to the T-Vision app to seamlessly share or record.

The fixed-focus optical system and wide field of view make it easy to quickly scan large areas and identify them.

- Objective Lens (Focal Length): 10 mm
- Detection Range (Human 1.8m x 0.5m): 458 m
- Frame rate, Hz: 25 Hz
- Magnification (Digital): 1x, 2x, 4x, 8x
- Resolution, Pixels: 720 × 540
- Built-in memory, GB: 8
- Hot tracking: Yes
- WIKI Hot spot: Yes
- T-Vision App support: Yes
- Degree of protection, IP code: IP67
- Dust protection: Protected against dust ingress
- Water protection: Protected against temporary submersion in water
- Dimensions, mm: 158 mm x 61 mm x 57 mm
- Weight: 0.26 kg
- Operating time on battery (WIFI & Hot tracking disabled): 8 Hours continuous running
- Charging interface: USB-C
